6.2.17 SaveSourceLocation

6.2.17.1 Outline of the node

This nodes saves source localization results.

6.2.17.2 Necessary file

No files are required

6.2.17.3 Usage

When to use

This node is used when a localization result is saved in a file for analysis of the localization result later. To read the saved file, the LoadSourceLocation node is used.

Typical connection

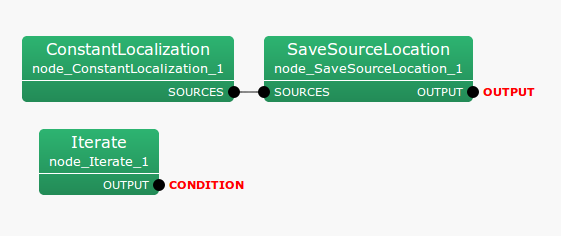

Figure 6.38 shows a typical connection example. The network shown in the example saves fixed localization results in files. For the save format, see . Moreover, this node can be connected to nodes that output localization results (e.g. LocalizeMUSIC , ConstantLocalization  or LoadSourceLocation ).

6.2.17.4 Input-output and property of the node

Input

SOURCES

: Vector<ObjectRef>  type. Source localization results are input. ObjectRef  type refers to Source  type data.

Output

OUTPUT

: Vector<ObjectRef>  type. Inputs (Source type) are output without modification.

Parameter

FILENAME

: string  type. No default values.

6.2.17.5 Details of the nodes

Typical error messages and their reasons

FILENAME is empty

Node parameter FILENAME is not assigned.

Can’t open file name

File open for write failed because, for example, the file is not writable.
