6.7.13 SourceSelectorByID

6.7.13.1 Outline of the node

This node is used to output only sound source separation results with IDs over a designated value among multiple sound source separation results. In particular, when setting the FIXED_NOISE property of the GHDSS node to true, negative IDs are given to stationary noise separation results. This node is used to filter the sounds other than these.

6.7.13.2 Necessary files

No files are required.

6.7.13.3 Usage

When to use

The sound source separation node GHDSS switches on the robot although it does not move it. When performing sound source separation under conditions in which the noise (e.g. the sound of the fan) is both stationary and known, an ID of the separation result of the noise is output as -1. Thus, when connecting SourceSelectorByID after the GHDSS node and setting the threshold value to 0, the separated sound of the stationary noise can be ignored in subsequent processing.

Typical connection

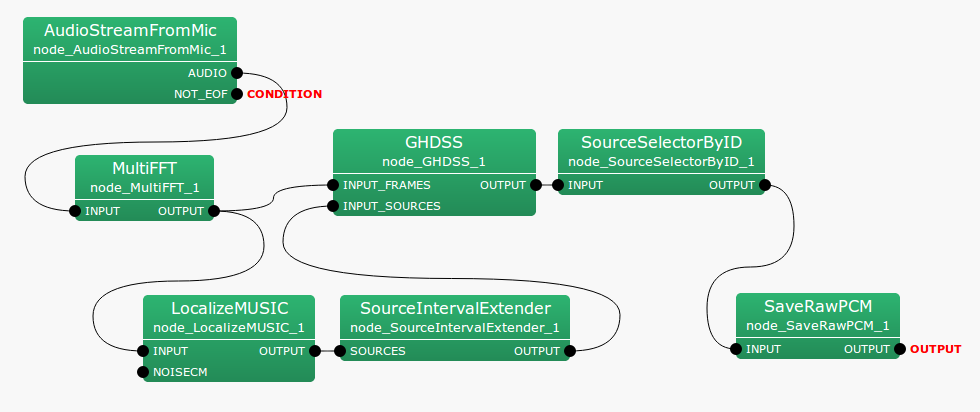

Figure 6.103 shows a example of a connection, in which the node is connected to the posterior half of GHDSS .

6.7.13.4 Input-output and properties of the node

Input

INPUT

: Map<int, ObjectRef> type. Since this node is usually connected after the sound source separation node is connected, sound source IDs correspond to int , the key of Map . ObjectRef is of Vector<float> type (power spectra) or Vector<complex<float> > (complex spectra), indicating a separation .

Output

OUTPUT

: Map<int, ObjectRef> type. Only data with sound source IDs greater than MIN_ID are extracted as output. The content of Map is same as that of INPUT.

Parameter

MIN_ID

: int type. Separated sounds with sound source IDs greater than this parameter value are passed. The default value is 0. When this node is connected after GHDSS , no changes to the default value are required.
