HARK version 1.1.0 Document : CMSave

6.2.2 CMSave

Module Overview

Saves the sound source correlation matrix to a file.

Requested Files

None.

Usage

In what case is the node used?

Use when saving the correlation matrix for a sound source, created from CMMakerFromFFT or CMMakerFromFFTwithFlag , etc.

Typical Examples

Figure. 6.11 shows a usage example of CMSave node.

INPUTCM input terminal is connected with a correlation matrix calculated from CMMakerFromFFT or CMMakerFromFFTwithFlag , etc. (type is Matrix<complex<float> > type, but to process correlation matrices, convert it from a three dimensional complex array to a two dimensional complex array and then output). FILENAMER and FILENAMEI are string type inputs, each indicating the saved files name containing the real and imaginary parts of the correlation matrix. OPERATION_FLAG is int type or bool type input, specifying when the correlation matrix is read. (Figure. 6.11 shows the connection of an Equal node as an example. However, if the node can output int type or bool type, then it does not matter at all).

$\includegraphics[width=0.7\linewidth ]{fig/modules/CMSave.eps}$

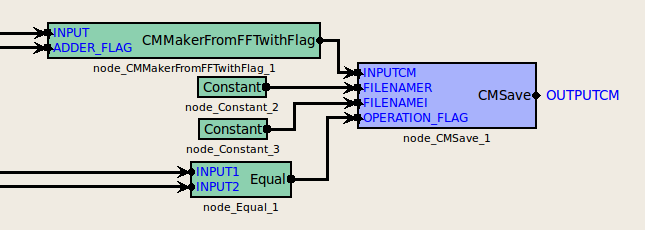

Figure 6.11: Network Example using CMSave

I/O and property setting of the node

Table 6.15: Parameter list of CMSave

Parameter	Type	Default	Unit	Description
NB_CHANNELS	`int`	8		Number of channels $M$ of input signal
LENGTH	`int`	512		Frame length $NFFT$
ENABLE_DEBUG	`bool`	false		ON/OFF of debugging information output

Input

INPUTCM: Matrix<complex<float> > type. Correlation matrix of each frequency bin. $M$ -th order complex square array with correlation matrix outputs $NFFT/2 + 1$ items. Matrix<complex<float> > indicates the row of frequency ( $NFFT/2 + 1$ rows), and column of complex correlation matrix ( $M * M$ columns).
FILENAMER: string type. Name of file containing the real part of the correlation matrix.
FILENAMEI: string type. Name of file containing the imaginary part of the correlation matrix.
OPERATION_FLAG: int type or bool type. Only when this input terminal is 1 or when true, the correlation matrix is saved.

Output

OUTPUTCM: Matrix<complex<float> > type. Same as INPUTCM.

Parameter

NB_CHANNELS: int type. Number of channels for input signal. Equivalent to the order of the correlation matrix. Must be matched with the order of the former correlation matrix used. Default value is 8.
LENGTH: int type. Default value is 512. FFT points at the time of Fourier transform. Must be matched till the former FFT points.
ENABLE_DEBUG: bool type. Default value is false. When true, it is output to the standard output when saving the correlation matrix.

Module Description

Corrects the correlation matrix to Matrix<float> type to a $M$ -th order complex square array for each frequency bin, and saves with the specified file name. Saved files are divided into real and imaginary parts of the correlation matrix. If the number of frequency bins is $k$ , and ( $k = NFFT/2 + 1$ ), then the saved file will store $k$ rows and $M^2$ columns each. Saving is performed only when OPERATION_FLAG is 1 or true.
