3.2.2 For Windows Users

For Windows, you can install using the installer. This program installs the following software.

HARK
FlowDesigner for HARK
HARK-SSS
HARK-Julius
WIOS
Kaldi
HARK-Python (for Python27 32bit)

First, run the windows installer of HARK, which you can find on HARK web page. If your OS is Windows 8, right click the installer, and select Run as administrator. Then, the installation of the HARK begins. If you agree the license, click the Next button. The installation will proceed. Similarly, you can install HARK, Flowdesigner, HARK-SSS, HARK-Python, HARK-Julius, WIOS, and Kaldi.

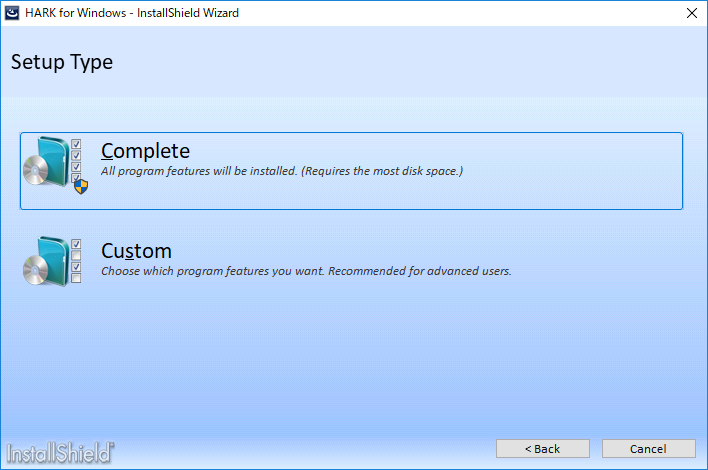

$\includegraphics[width=100mm]{fig/FirstStep/InstallType_en}$

Figure 3.1: Select install type

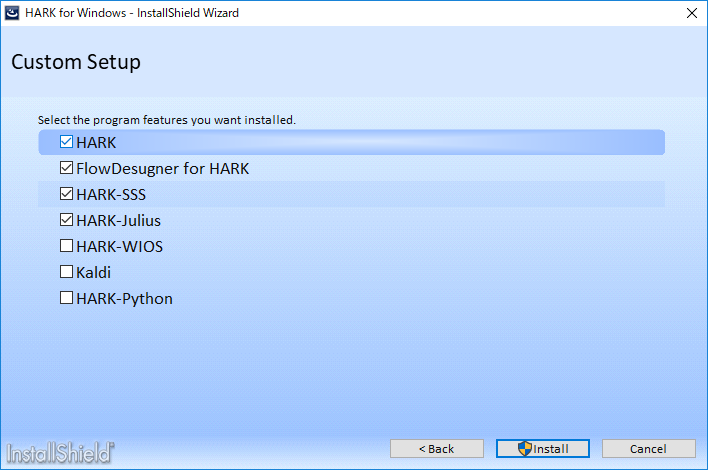

$\includegraphics[width=100mm]{fig/FirstStep/InstallFeature_en}$

Figure 3.2: Select modules

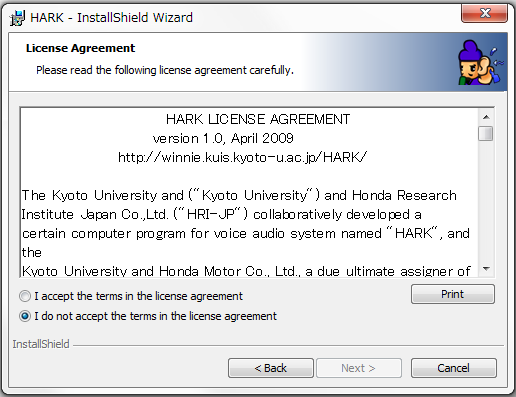

$\includegraphics[width=80mm]{fig/FirstStep/Lisence_en}$

Figure 3.3: End-User License Agreement

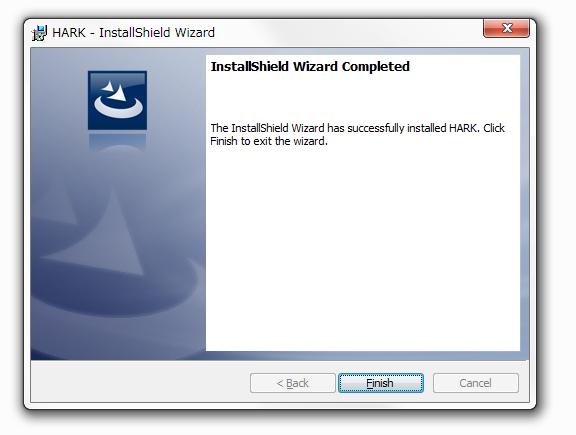

$\includegraphics[width=80mm]{fig/FirstStep/Continue_en}$

Figure 3.4: Installation

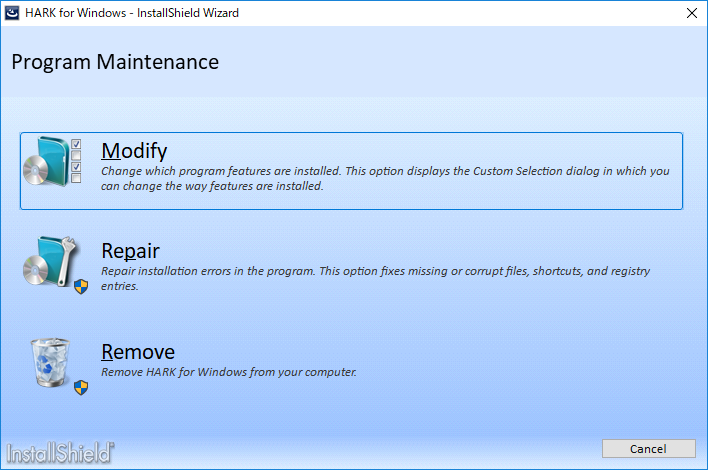

$\includegraphics[width=100mm]{fig/FirstStep/Maintenance_en}$

Figure 3.5: How to upgrade-install 1

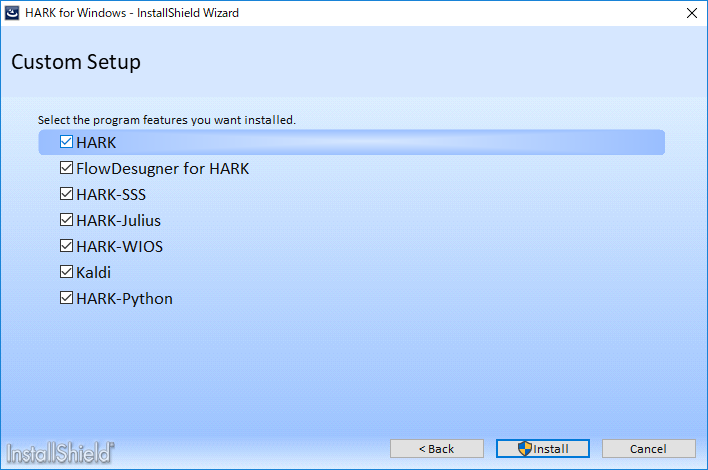

$\includegraphics[width=100mm]{fig/FirstStep/ChangeFeature_en}$

Figure 3.6: How to upgrade-install 2

You can uninstall HARK by the following 3 methods.

Start menu $\rightarrow $ Programs $\rightarrow $ HARK $\rightarrow $ Uninstall
Control Panel $\rightarrow $ Unintall a program $\rightarrow $ HARK for Windows
Execute Installer

If you upgrade-install, you must be careful of the following procedure.

Execute Installer
Select Modify
Put some checks for update module and click ’Install’
