7.1.8 Generation of the noise location information file

The noise location information file is a text file describing the noise location
This file is generated using the template preparation function of HARKTOOL as follows:

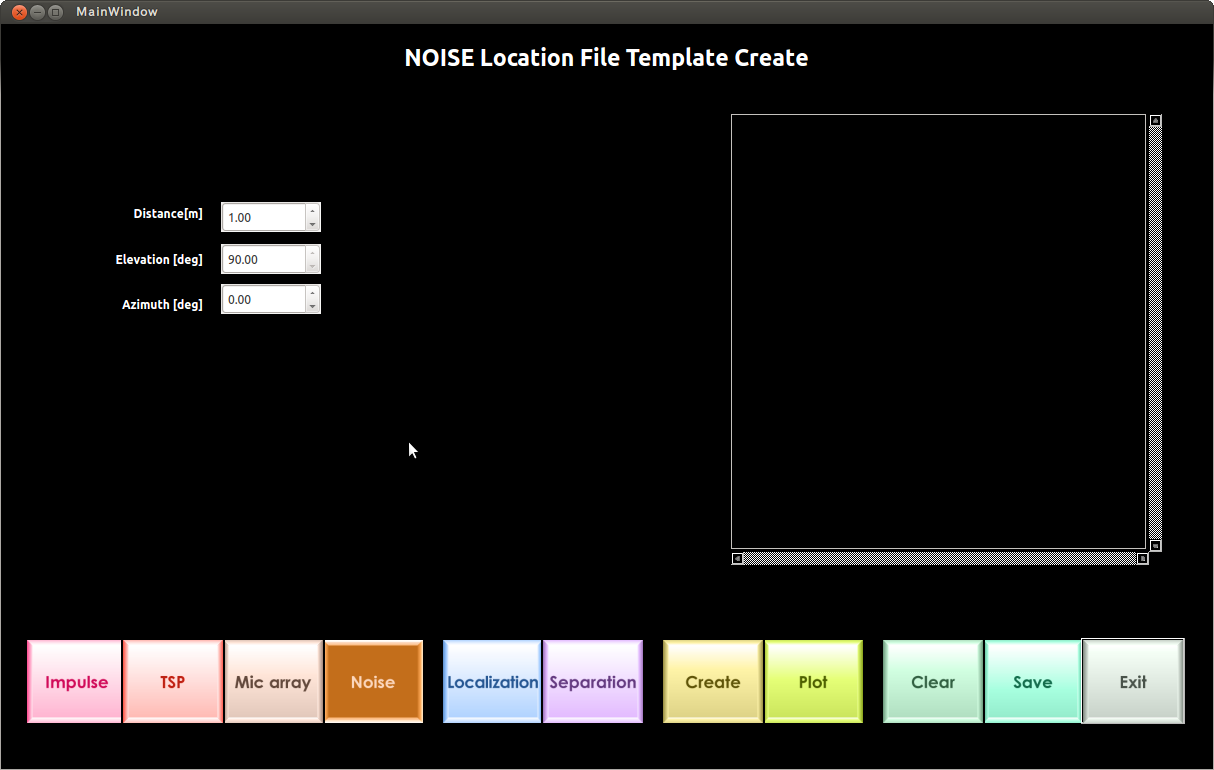

$\includegraphics[width=120mm ]{fig/tools/harktool/en/noise-1-en}$

Figure 7.7: noise-LocationFile Edit

Generation Process

Click the noise button on the working screen.
Input the parameters into the parameter input screen on the left side.
Overview of setting items
- Distance [m]
  The horizontal distances of the speaker and microphone.
- Elevation [deg]
  The elevation angle seen from the microphone in the direction of the speaker.
- Azimuth [deg]
  The azimuth angle seen from the microphone in the direction of the speaker.
Pushing the Create button on the bottom of the screen generates the noise location information file and displays the contents of this file on the right side.
Pushing the bottom-right Plot button displays the graph according to the input parameters.
To save the created file, use Save button on the bottom of the screen.
