Dependent software¶

HARK Designer depends on software. Please install before you install HARK Designer

• node.js (An application server)
  • For Windows users: Download the latest version from http://nodejs.org/
  • For Ubuntu users:
    • Download the latest version from http://nodejs.org/
    • Add PPA to your system (see https://launchpad.net/~chris-lea/+archive/node.js/) and apt-get install nodejs.
• graphviz (For auto re-organizatoin)
  • For Windows users download and install the latest version from http://www.graphviz.org/
  • For Ubuntu users sudo apt-get install graphviz
• Google Chrome
  • Currently, HARK Designer supports the latest version of Google Chrome. Download and install from https://www.google.com/chrome
  • Note that HARK Designer also works basically both on Firefox and Safari.

Install¶

Step 1: Open the HARK Designer¶

For Windows users¶

After you installed the HARK Designer, you will see the icon of HARK Designer on your desktop. When you double-click it, then (1) node.js application runs, and (2) Google Chrome opens and access to http://localhost:3000.

You will see a web page as shown in the following figure.

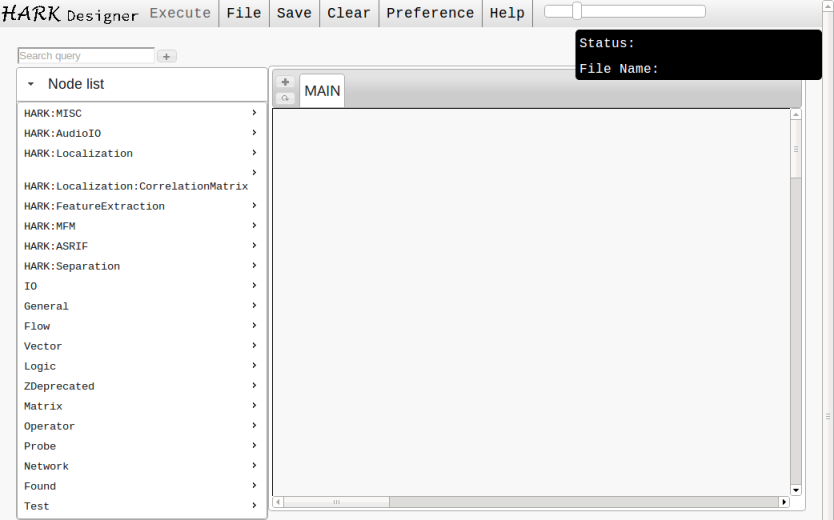

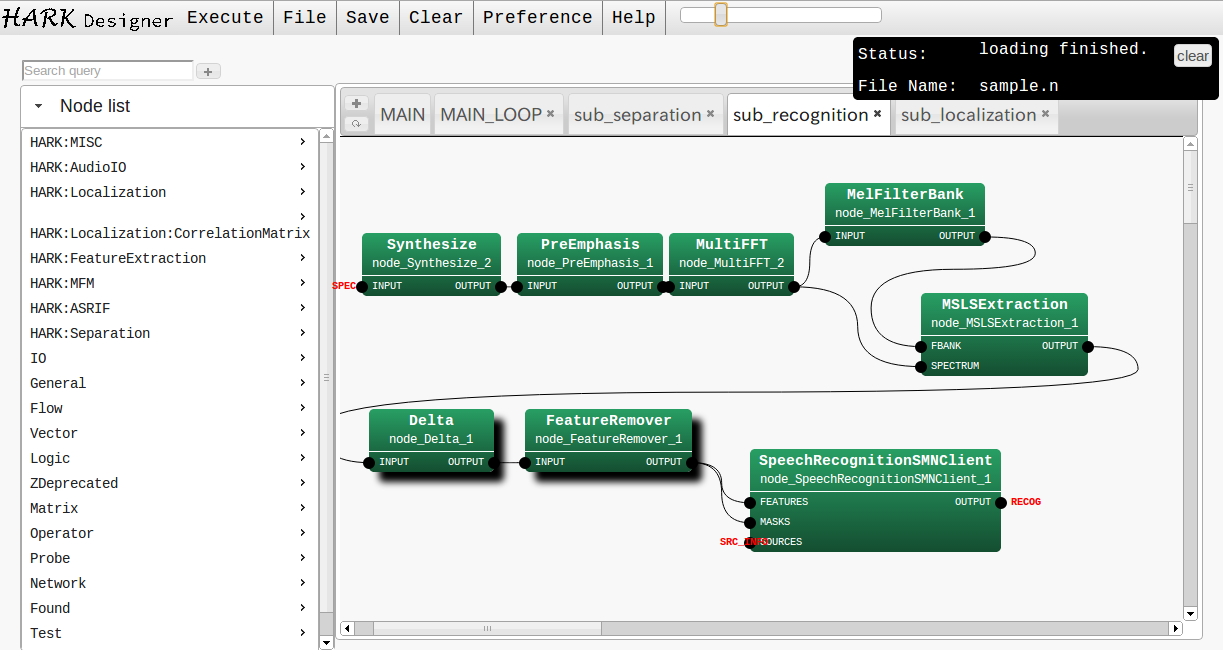

Step 1: The initial screen.

Step 2: Add Nodes¶

First, you need to add nodes. In this case, add Constant and InputStream, which are both in General category.

You have two ways to add these nodes:

1. On the Node list on the left side of the window, click General and click Constant, then, click General and InputStream.
2. Type the name Constant or InputStream to the input box above the Node list. You can incrementally search nodes. You can select a node to add by clicking or pressing arrow keys and Enter key.

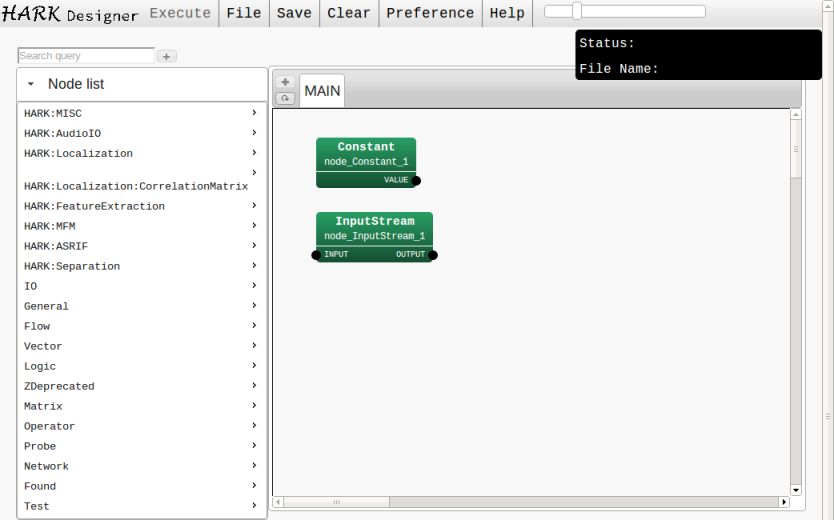

Step 2: Two nodes are added to the MAIN network.

Step 3: Connect Nodes¶

Then, connect the two nodes. Drag the output terminal VALUE of Constant, and drop at the input terminal INPUT of InputStream.

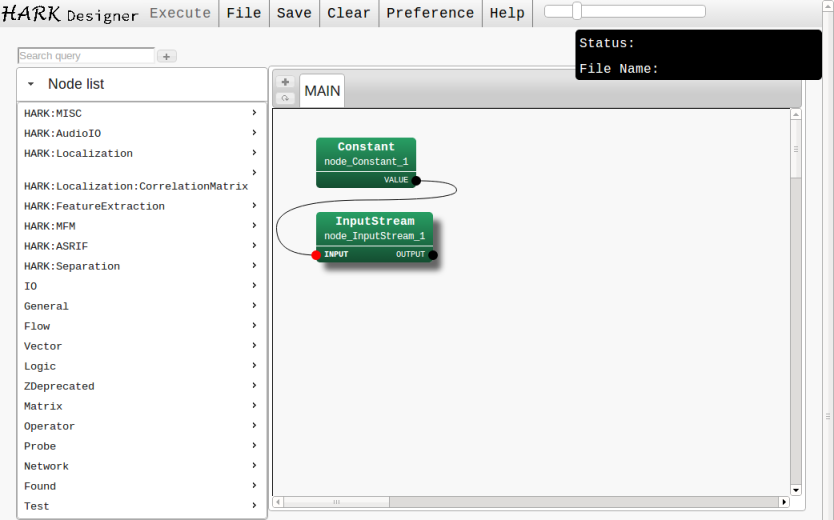

Step 3: Two nodes are connected.

Step 4: Add a New Sheet¶

Let’s add a new sheet, which contains a set of nodes. Click the add sheet button next to MAIN network (marked as red circle in the figure), then, a dialog will appear. Input a name of your new sheet and select a type. In this case, the name is LOOP0 and the type is iterator.

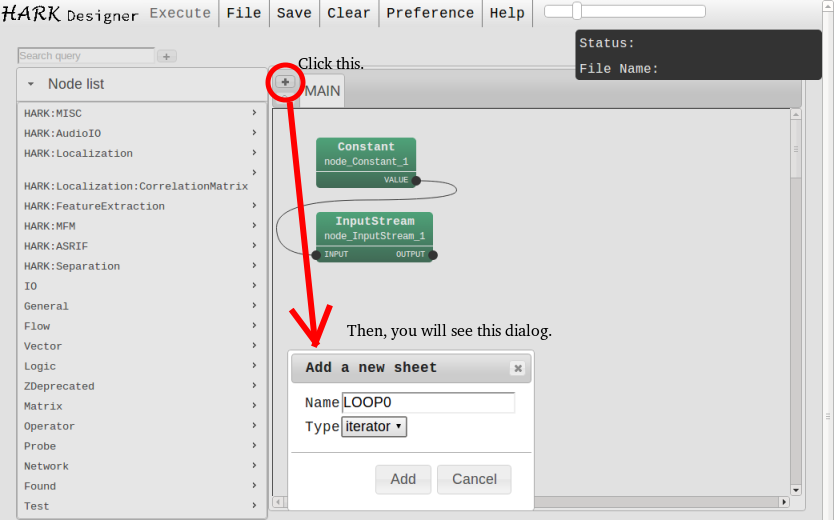

Step 4: A dialog for adding a new sheet

Step 5: Add and Connect Nodes in the New Sheet¶

Similar to step 1, add five nodes: AudioStreamFromMic, MultiFFT, LocalizeMUSIC, SourceTracker, and DisplayLocalization on the iterator sheet LOOP0. Then, connect them as shown in the figure.

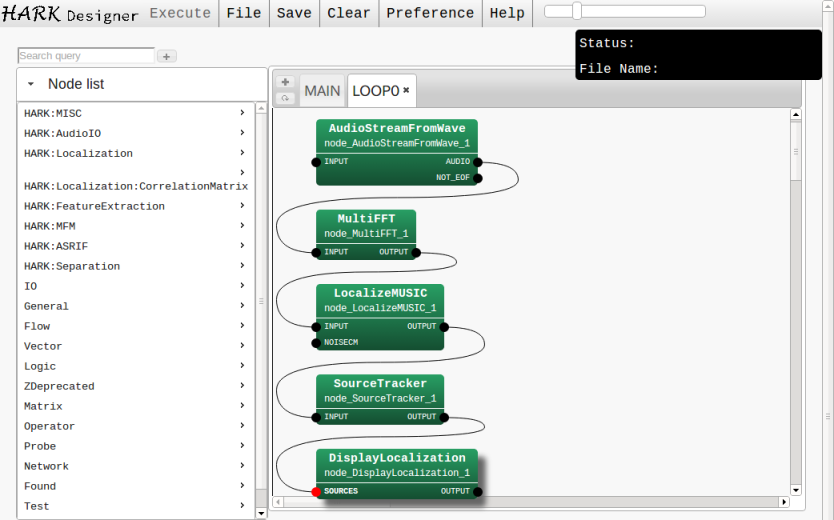

Step 5: Five nodes are connected.

Step 6: Automatic Alignment¶

Let’s try some features of HARK Designer. The first one is “automatic alignment”, that automatically changes the orders of nodes. Click a button shown in the figure. Then, HARK Designer automatically realign the node positions. Use it if your network gets messy.

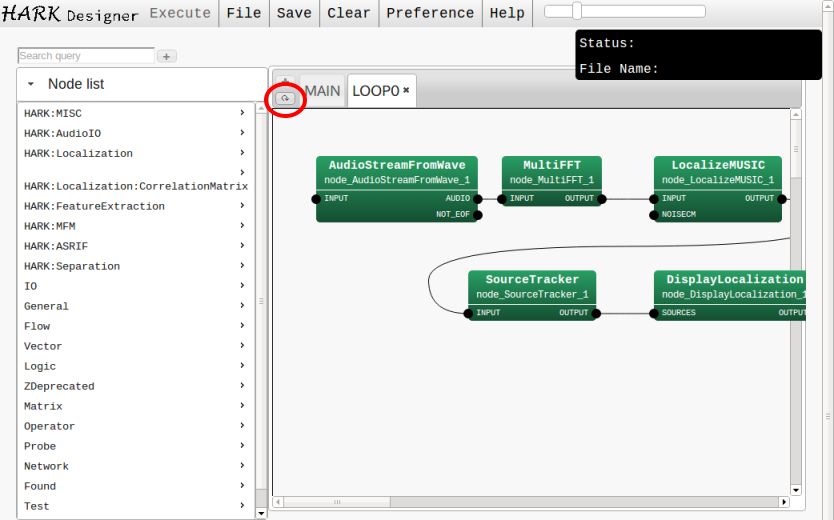

Step 6: The result of automatic alignment

Step 7: Hide Node List¶

Another feature of HARK Designer is “hiding a node list”. Click the button named “Hide list” next to the input box for node search. Then, you can hide the list and enlarge the area of the network.

Step 7: Node list is hidden.

Step 8: Configure Parameters¶

To configure the parameters of the node, you can open the parameter dialog by (1) double-clicking the node or (2) right click the node and select “Property”. On the dialog, you can select the type and value of the parameters and click OK to apply the changes.

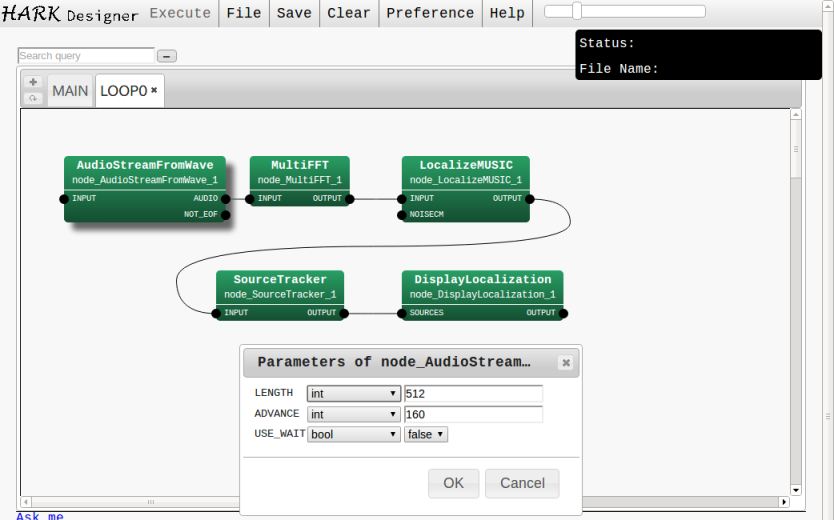

Step 8: A parameter dialog for AudioStreamFromWave.

Step 9: Set Terminal Roles¶

Then, set the terminals roles. Right-click a terminal that you want to give a role, and select from a context menu.

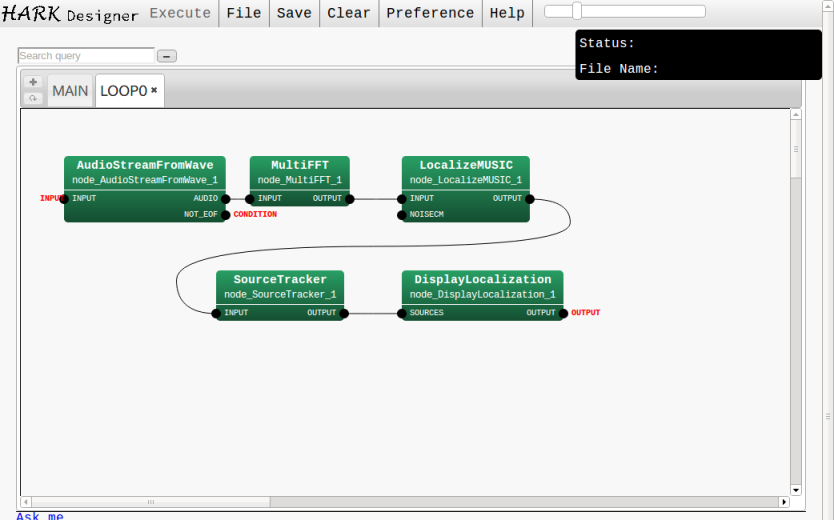

Step 9:

Node¶

Link¶

Sheet¶

Terminal Role¶

Node¶

You can do the following operations for nodes.

• Add

  You can select a node from the node list in the sidebar.

  By Mouse

  Click a category, e.g., HARK:Separation, and click a node name. You can add a new node in the current sheet.

  By Keyboard

  You can incrementally search a node. Type a part of a node name in the node search box. You can select a node by arrow keys, and add a node by enter key.

  You can also copy and paste. Select multiple nodes and type Ctrl+C or Ctrl+X for copying or cutting. Then, type Ctrl+V to paste the nodes.

• Select

  Selected node will have a shadow.

  By Mouse

  You can select a node by clicking a node or multiple nodes by dragging an area.

  By Keyboard

  You can select a node using Tab key. Ctrl + A is a shortcut for selecting all nodes.

• Move

  By Mouse

  You can move one node by dragging it. If multiple nodes are selected, they are also dragged.

  By Keyboard

  You can select multiple nodes you have selected using arrow keys or hjkl keys, i.e., vim-like key binding.

• Delete

  When you delete a node, the links connected to the node will also removed automatically.

  By Mouse

  Right click a node and select “Delete”, then, you can delete the node.

  By Keyboard

  Press Delete button to delete all selected nodes.

• Parameter Configuration

  • Opening a parameters dialog

    By Mouse

    You can open a parameter dialog by (1) right-clicking a node and select “Property” or (2) double-clicking a node.

    By Keyboard

    Select a node and press Enter key. You will see parameter dialogs.

  • Edit parameters

    Each row in the dialog corresponds to a parameter, you will see (1) the name, (2) the type, and (3) the value. You can change the type of the parameter in a drop-down list (int, float, ...) and add a value in the input box.

    When you select subnet_param as a type, the value becomes the parameter name, and the corresponding dynamic node will have a new parameter whose name is the value.

    When you select file as a type, you can select a file name you have uploaded.

    HARK Designer automatically checks the input. If you input a wrong value, for example, input a value “12.5” to int type, the dialog will indicate the error.

• Add/Delete Inputs or Outputs

You can add inputs and outputs to a node. Right click the node and select “Add Input” or “Add Output”. This operation makes sense only if the node accepts additional inputs or outputs.

To delete the added inputs/outputs, right click it and select “Delete Input” or “Delete Output”.

• Add/Delete terminals

You can add a terminal manually. These terminals are valid only if the node accepts the additional terminals. Only mouse operation is supported for this action.

To add a terminal, right click a node and select “Add Input” or “Add Output”, then you can specify the name of the new terminal.

To delete a terminal, right click the added terminal and select “Delete this input/output”.

• Help

  When you right click the node and select help, you can see a web page that describes the node.

Link¶

You can do the following operations for links.

• Connect

  Drag a terminal (black circle) and drop at a terminal you want to connect. You can connect only (1) an input and an output, not input-input nor output-output, (2) the terminals with the same types.

  When you start dragging, HARK Designer suggests the terminals that you can connect by gray lines.

• Delete a link

  Right-click the terminal and select “Delete the link”, then, you can delete the link.

Sheet¶

You can do the following operations for sheets.

• Add a sheet

  Click the plus icon on the left of MAIN tab. Then you can specify the name and the type of a new sheet. Click the new tab to open the sheet.

• Delete a sheet

  Click the cross icon on the right of a sheet you want to delete, or right-click the sheet and select “Delete the sheet”.

• Configure a sheet

  To change the sheet name, right-click the sheet tab and select “Change the name”. To change the sheet type, right-click the sheet tab and select “Change to subnet” or “Change to iterator”.

• Dynamic node

  When you add a new sheet, you can find a dynamic node whose name is the sheet name in the node list. The category name is Dynamic.

Terminal Role¶

You can do the following operations for terminal roles.

• Add a role to a terminal

  Right-click a terminal, select “Set as Input” or “Set as Output”, and give the name for the role. You will see the role name in the terminal, and the dynamic node will have the input or output.

• Delete a role to a terminal

  Right-click a terminal and select “Delete Output” or “Delete Input”. The role name and corresponding terminals of the dynamic node will disappear.

Buttons and Console¶

On the top of the HARK Designer, you will see thee components: buttons, a slider, and a console shown as a black box. This section describes the role of each component.

File Manager Button¶

Using the File Manager, you can upload and download files, and load a network. Since HARK Designer can find only uploaded files, you need to all file required for your network.

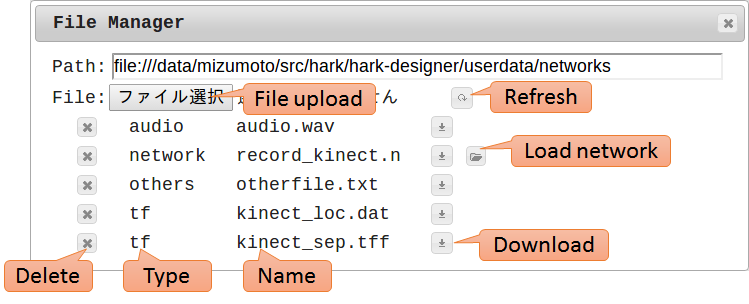

Screen shot of the File Manager

Uploading

Click the button next to File: shown as “File upload”. You can upload multiple files.

File list

Once you have uploaded a file, they will be shown in the dialog. For each file, you can see delete button, file type, file name, download button, and load button.

Delete button is for deleting the file.

File type has four kinds: audio, tf, network, others, and unknown. They are automatically determined by its extension.

• If the extension is ”.wav” or ”.raw”, the type becomes “audio”.
• If the extension is ”.dat” or ”.tff”, the type becomes “tf”.
• If the extension is ”.n”, the type becomes “network”.
• If the extension is anything else, the type becomes “others”.
• If the file is not uploaded through this dialog, the type becomes “unknown”.

Download button is for downloading.

Load button appears only for “network” type. When you click it, the network will be loaded to HARK Designer.

Refresh

Although the file list is refreshed for each uploading, you can refresh the list manually

Path

The real path is shown in this box. You can access this path to directly access the directory.

Node is disappeared.¶

If you have troubles about the node positions, use automatic alignment. This function overwrites all existing nodes.

I want to reset everything.¶

HARK Designer provides some ways to reset.

1. Reload the web page You will start the application.
2. Click Preferences -> All reset HARK Designer forgets all user preferences. Technically, it clears localStorage, which is a storage space of a browser, defined in HTML5.
3. Clear networks.csv in the path to the HARK Designer to clear files. This is a file database of HARK Designer. (This will be replaced more sophisticated database system in the near future.) Therefore, File Manager Dialog has some error if the file is corrupted. Even if you clear networks.csv, the uploaded files will not be deleted since networks.csv is only a list of files. You can re-create it by uploading them again.

I want to known what error is occurred¶

Many modern browsers has good debugging systems. For example, Google Chrome,

1. Right-click the browser. Note that we disabled the default context menu at some places.
2. Select Inspect Element. Then, a new window will appear.
3. Click Console tab.

In the Console tab, you will see messages such as errors and debug messages. Debugging will become much easier if you also send the error message to us.

Executing through HARK Designer fails¶

If you have a trouble about Execute button, please try to access the file and run without HARK Designer.

• How to find the file

  The file path can be found in the path of File Manager dialog. Cut the “Path” input box, and access with the browser.

• How to run the network without HARK Designer

  • Linux open a terminal, cd to the path, and run batchflow your_network.n
  • Windows open a Command Prompt, cd to the path, and run batchflow your_network.n
