7.1.4 Working Screen

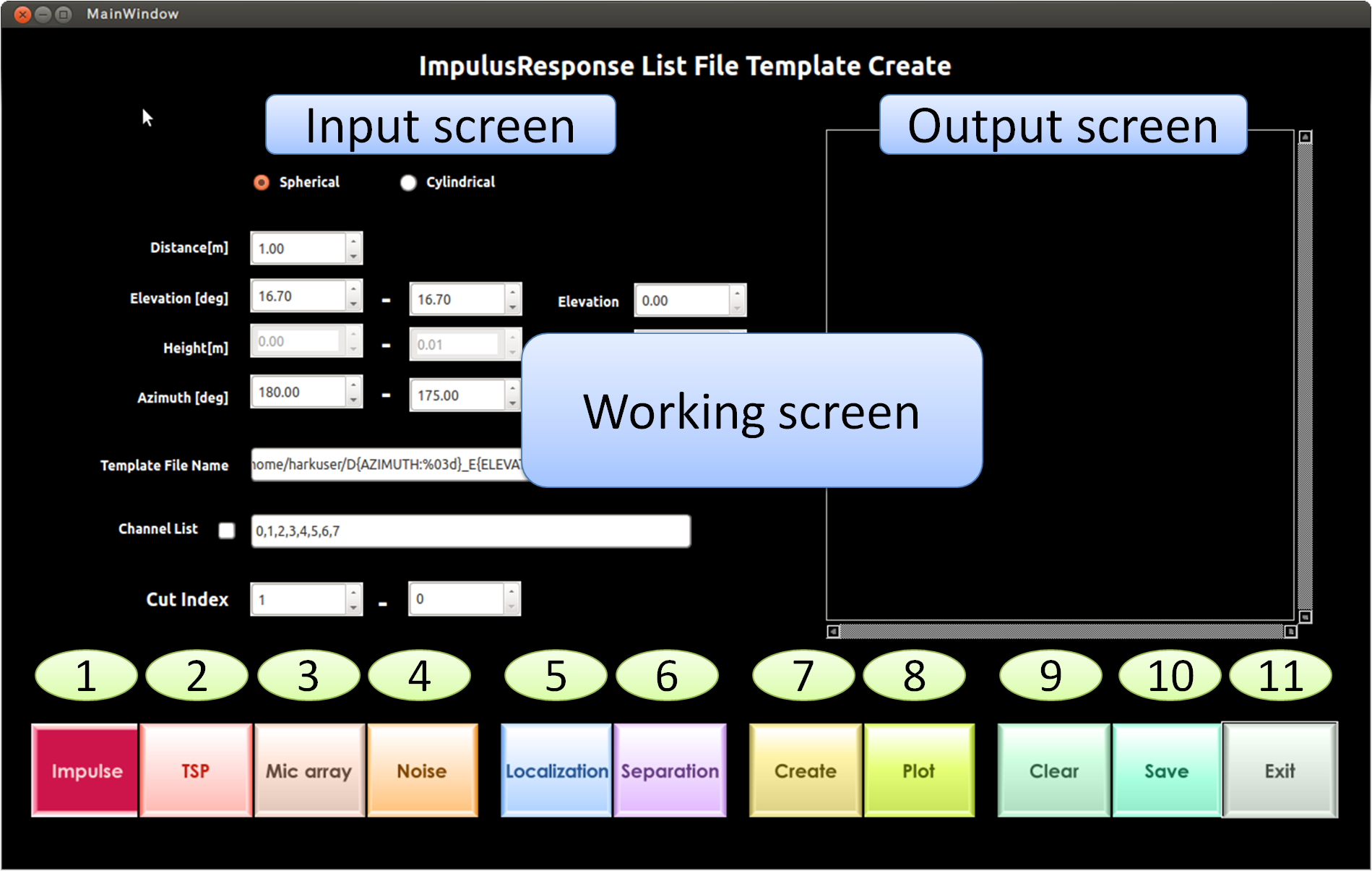

Figure 7.2: Working Screen

■Buttons of Working Screen

1. Impulse
   This command creates an impulse response list file.
   This command also displays the graph of the generated impulse response.

2. TSP
   This command creates a TSP response list file.
   This command also displays the graph of the generated TSP response.

3. Mic array
   This command creates a microphone location information file.
   This command also displays the graph of the generated microphone location information file.

4. Noise
   This command creates a noise location information file.
   This command also displays the graph of the generated noise location information file.

5. Localization
   This command creates a localization transfer function file.

6. Separation
   This command creates a separation transfer function file.

7. Create
   This command creates a template file and a transfer function.

8. Plot
   This command displays a graph.

9. Clear
   This command resets the input parameters to the initial values.

10. Save
    This command saves the created file.

11. Exit
    This command exits the HARKTOOL4.

■Menu Items of the FILE tab of the Menu bar

2. open
   Menu open opens the created file.


   save
   Menu save saves the created file.


■Menu Items of the MENU tab of the Menu bar

2. Impulse
   Menu Impulse is the same as the Impulse button.

   tsp
   Menu tsp is the same as the TSP button.

   MicArray
   Menu MicArray is the same as the Mic array button.

   noise
   Menu noise is the same as the Noise button.

   localization
   Menu localization is the same as the Localization button.

   separation
   Menu separation is the same as the Separation button.

   create
   Menu create is the same as the Create button.

   plot
   Menu plot is the same as the Plot button.

   clear
   Menu clear is the same as the Clear button.

   Exit
   Menu Exit is the same as the Exit button.
